Measurement Chart

Determining Your Door Size

Your Murphy Door arrives fully assembled and pre-hung in the jamb, much like a regular interior door. In order to determine what size you will need, you'll need to measure your existing doorway. This can be done with an existing door (finished opening) or a rough opening (where you can see the 2x4's).

For reference, standard interior door widths range from 24"-36" (finished opening). While a standard door height is 80" (finished opening). The difference between a rough opening and finished opening is usually 2-3 inches.

Refer to the charts below to determine what size of door you will need. If you have questions, give us a call at 888-458-5911. You can also check out our video on how to measure here.

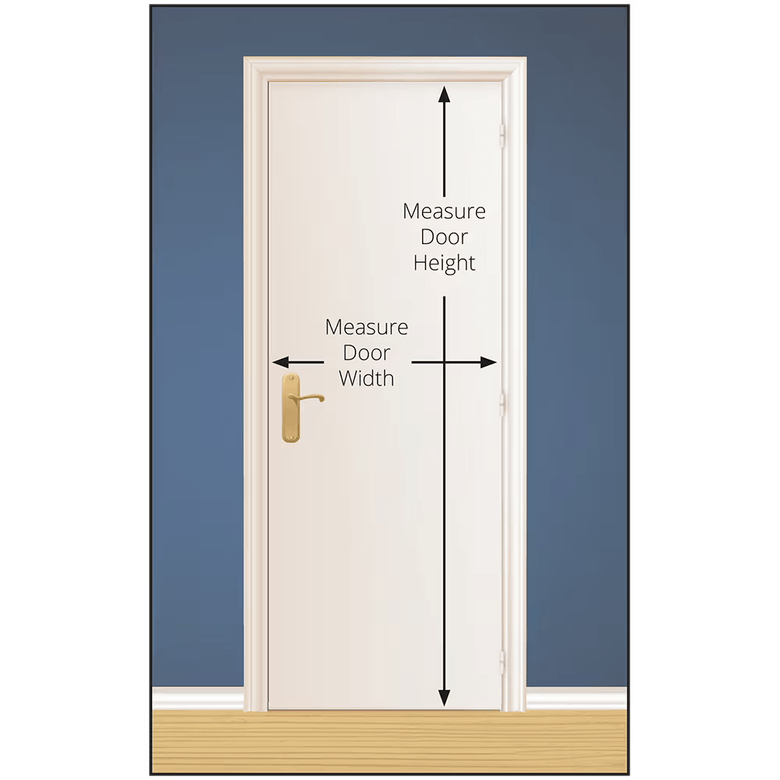

Existing Single Door

White interior door with gold handle showing measurement guidance for door width and height against blue wall.

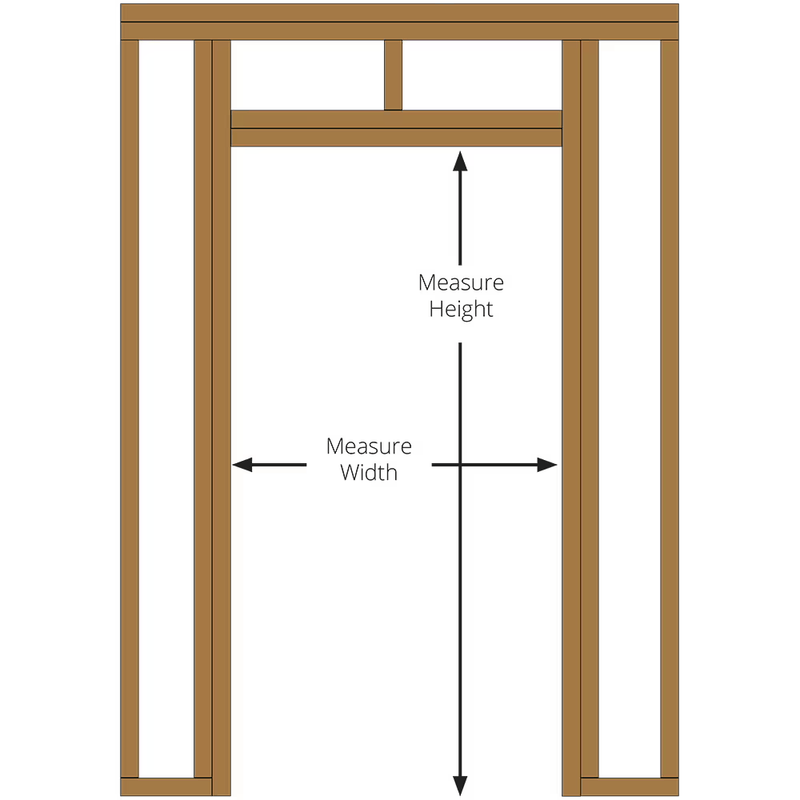

Rough Opening Single

Murphy Door® wooden door frame diagram showing measurement points for width and height when installing a custom hidden door.

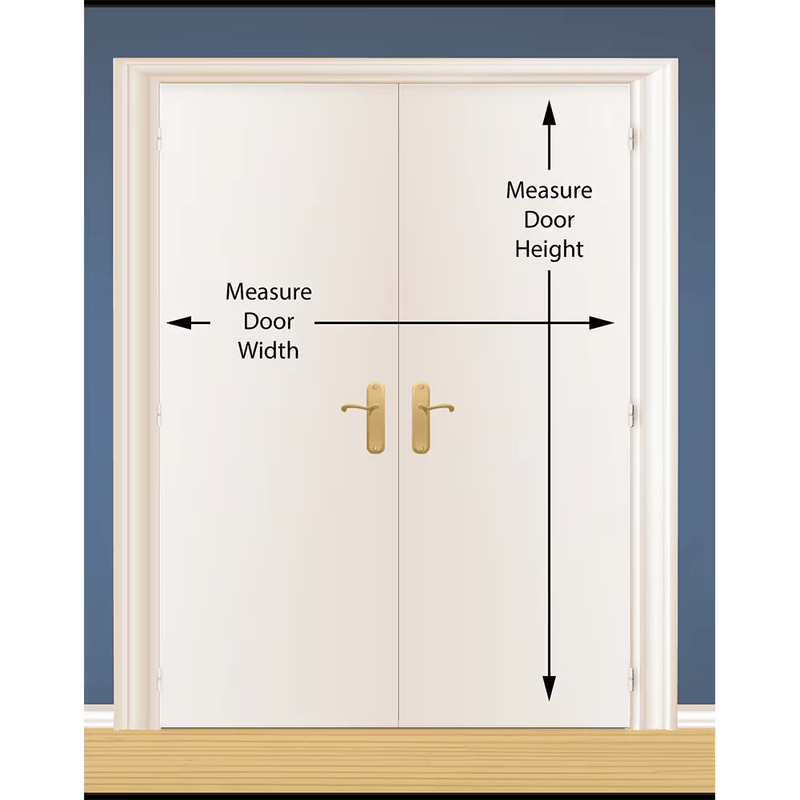

Existing French Door

White double doors with gold handles showing measurement guides for width and height, by Murphy Door®.

Measurements For Existing Door

Existing Door Width Existing Door Height Door Size to Order
23.5″ - 24″ 79″ - 81″ 24″
25.5″ - 26″ 79″ - 81″ 26″
27.5″ - 28″ 79″ - 81″ 28″
29.5″ - 30″ 79″ - 81″ 30″
31.5″ - 32″ 79″ - 81″ 32″
33.5″ - 34″ 79″ - 81″ 34″
35.5″ - 36″ 79″ - 81″ 36″

Measurements For Rough Opening

Rough Opening Width Rough Opening Height Door Size to Order
25.75″ - 27″ 81.5″ - 83″ 24″
27.75″ - 29″ 81.5″ - 83″ 26″
29.75″ - 31″ 81.5″ - 83″ 28″
31.75″ - 33″ 81.5″ - 83″ 30″
33.75″ - 35″ 81.5″ - 83″ 32″

35.75″ - 37″

37.75"-39"

81.5″ - 83″

34″

36"

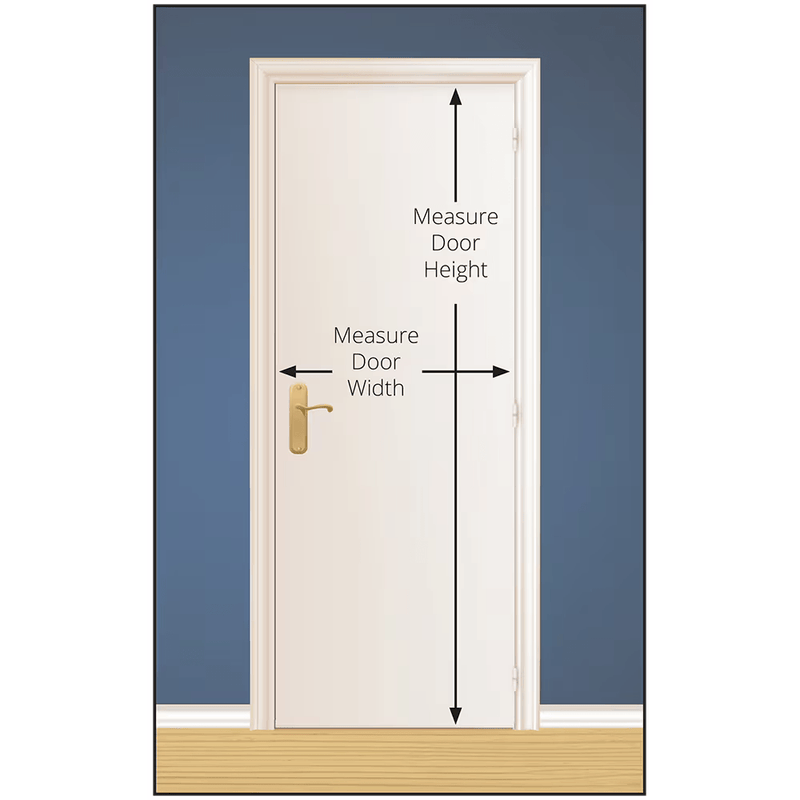

Existing Single Door

White interior door with gold handle showing measurement guidance for door width and height against blue wall.

Measurements For Existing Door

Existing Door Width Existing Door Height Door Size to Order
23.5″ - 24″ 79″ - 81″ 24″
25.5″ - 26″ 79″ - 81″ 26″
27.5″ - 28″ 79″ - 81″ 28″
29.5″ - 30″ 79″ - 81″ 30″
31.5″ - 32″ 79″ - 81″ 32″
33.5″ - 34″ 79″ - 81″ 34″
35.5″ - 36″ 79″ - 81″ 36″

Rough Opening Single

Murphy Door® wooden door frame diagram showing measurement points for width and height when installing a custom hidden door.

Measurements For Rough Opening

Rough Opening Width Rough Opening Height Door Size to Order
25.75″ - 27″ 81.5″ - 83″ 24″
27.75″ - 29″ 81.5″ - 83″ 26″
29.75″ - 31″ 81.5″ - 83″ 28″
31.75″ - 33″ 81.5″ - 83″ 30″
33.75″ - 35″ 81.5″ - 83″ 32″

35.75″ - 37″

37.75"-39"

81.5″ - 83″

34″

36"

Pass-through space charts

It's important to keep in mind that a Murphy Door takes up more room than a regular door. The width of your doorway and the depth of your door will determine how much space you have to move in and out of the door.

Be sure to check the charts below to make sure you will have the pass through space you need.

  • Murphy Door® diagram showing door depth measurements for 8¼" and 12" doors with pass-through space and wall clearance requirements.
  • Murphy Door® diagram showing out-swing door measurements with pass-through space tables for 8 1/4" and 12" door depths.
  • Murphy Door® French door outswing diagram showing pass-through space measurements for 8 1/4" and 12" door depths with various opening widths.
  • Murphy Door® French door diagram showing in-swing pass through measurements for 8 1/4" and 12" door depths with wall clearance specifications.
