How Hidden Doors Work: Mechanics Explained
Direct Answer
Hidden doors work using specialized pivot hinge systems that distribute a door's weight through top and bottom pivots rather than traditional side hinges. This engineering allows heavier doors (up to 500 lbs) to operate smoothly with minimal effort. The pivot hinges are mounted to the building's header and floor, enabling large doors like bookcases or wall panels to swing open while remaining perfectly balanced and invisible when closed.
Definition: Hidden Door Mechanics
Hidden doors are operable doors designed to be invisible or blend seamlessly with surrounding architecture when closed. They differ from traditional doors by using pivot hinge systems rather than conventional barrel hinges. Pivot hinges distribute the door's weight vertically (through top and bottom pivots) rather than horizontally (through side hinges), which allows larger, heavier doors to operate smoothly.
The mechanics involve load distribution through the building's structural frame, ball bearing systems for smooth operation, and specialized locking mechanisms that remain hidden from view. Professional-grade hidden door systems are engineered to commercial specifications and typically require professional installation due to the structural reinforcement needed.
Based on installation practices used in professional hidden door systems by Murphy Door engineers.
How Hidden Doors Work: The Basics
Hidden doors operate on specialized hardware systems designed to provide seamless operation while supporting significant weight. The key difference between hidden doors and traditional doors is the hinge system—pivot hinges instead of traditional hinges allow for heavier, larger doors and create invisible gaps.
Pivot Hinge Mechanics Explained
Pivot hinges are engineering marvels. Instead of traditional hinges on the side of a door, pivot hinges use top and bottom pivot points that distribute the door's weight through the frame and floor/ceiling.
- Top pivot: Mounted to header, supports door weight and forward/backward movement
- Bottom pivot: Mounted to floor, provides stability and lateral support
- Load distribution: Weight flows through both pivots, supporting doors up to 500 lbs
- Smooth operation: Ball bearings in pivot points enable near-effortless opening
- Durability: Commercial-grade pivots last 20–30+ years with minimal maintenance
Load Distribution & Weight Management
Hidden doors must support their own weight without sagging or binding. Load distribution is critical for long-term reliability.
- Door weight capacities: 100–500 lbs depending on hardware grade
- Weight flows downward through top pivot into header and wall frame
- Floor bears the lateral force through bottom pivot
- Structural reinforcement required for doors over 300 lbs
- Professional installation ensures proper weight distribution
Door Weight & Structural Requirements
Heavier doors require more robust structural support. A bookcase door (typically 200–400 lbs) needs stronger reinforcement than a 100-lb panel door.
- Header reinforcement: Steel lintels for doors over 250 lbs
- Floor reinforcement: Structural support at bottom pivot point
- Wall framing: Adequate studs and backing for pivot mounting
- Clearance: Minimum 6" clearance required above/below pivots
Types of Hidden Door Systems
Different systems serve different purposes. Common types include:
- Pivot door systems: Most common, highest capacity (200–500 lbs), most expensive
- Sliding door systems: Lower profile, limited capacity (100–250 lbs), less expensive
- Hidden hinge systems: Concealed hinges, moderate capacity, seamless appearance

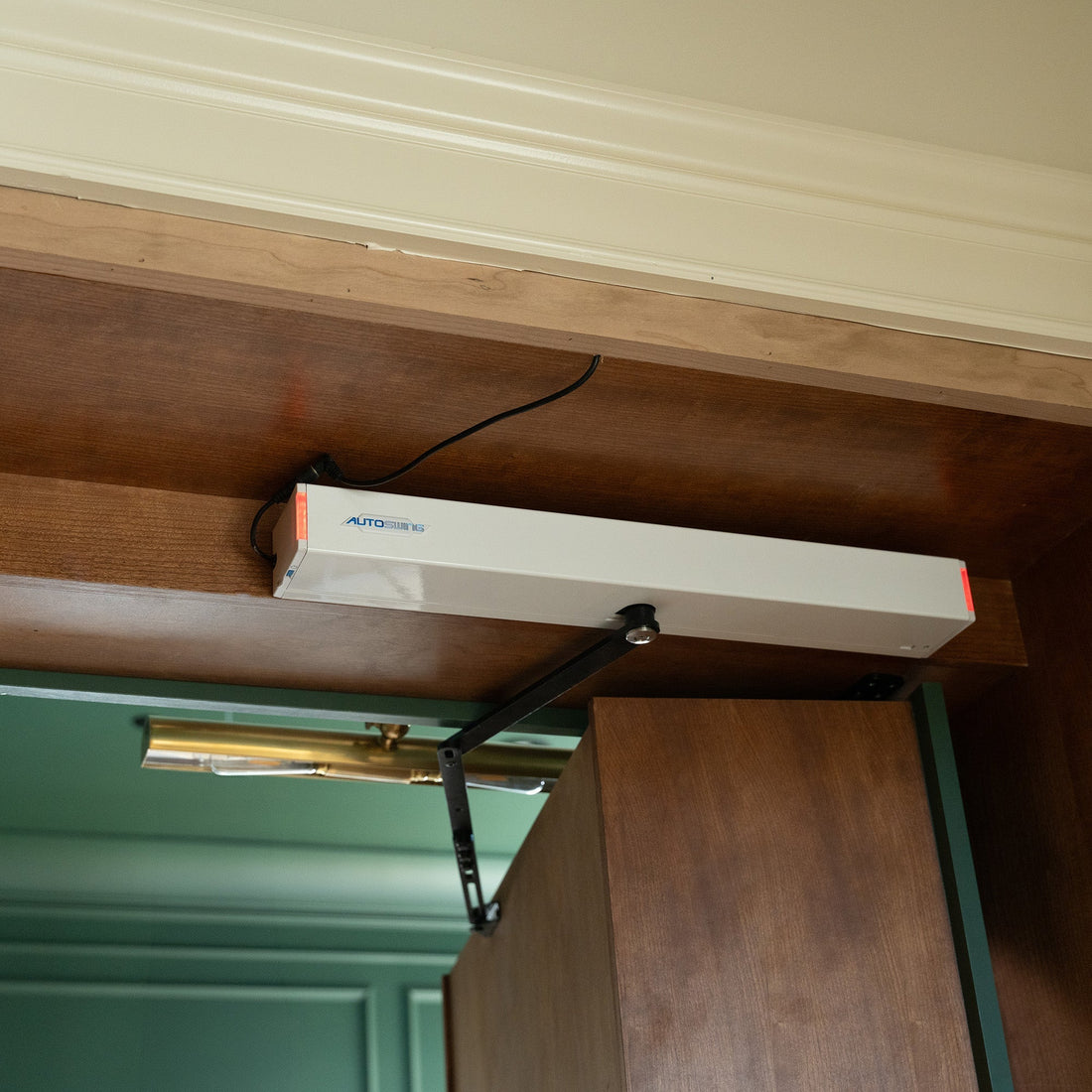

- Motorized systems: Automated opening/closing, premium price, modern convenience
- Bookcase door systems: Pre-assembled packages, moderate capacity, fastest installation
Commercial vs. Residential Grade Hardware
Hardware grades differ significantly in durability and cost.
- Residential grade: $300–$800 per pivot set, 10–15 year lifespan, suitable for occasional use
- Commercial grade: $800–$2,500+ per pivot set, 20–30+ year lifespan, suitable for frequent use
- Difference: Bearing quality, metal composition, closure mechanisms, durability specifications
- Recommendation: Choose commercial grade for frequently used doors or high-end installations
Durability & Lifespan
Well-installed hidden doors should operate smoothly for decades with minimal maintenance.
- Residential pivot hinges: 10–15 years typical lifespan
- Commercial pivot hinges: 20–30+ years with proper maintenance
- Maintenance: Annual lubrication of pivot points extends lifespan
- Common issues: Sagging (weight distribution problem), binding (alignment issue), squeaking (lubrication needed)
Murphy Door Hardware Advantages
Murphy Door systems are engineered for reliability and seamless operation. Our commercial-grade hardware ensures your hidden door operates smoothly for decades.
Frequently Asked Questions
A: Residential hinges support 100–300 lbs; commercial hinges support up to 500+ lbs.
A: Simple installations possible for experienced DIYers; complex installations require professionals.
A: Commercial hinges last 20–30+ years; residential hinges 10–15 years with proper maintenance.
A: Annual lubrication of pivot points; periodic alignment checks for heavy doors.How to Design a Hidden Room: Step-by-Step Guide
