| Quick Answer: Hidden bookcase doors use a patented ball-bearing lower pivot point system, not standard butt hinges. Murphy Door®'s hinge and hardware system is tested to 1,540 lbs and pairs a floor-mounted pivot with an upper pivot pin to distribute the load of a fully loaded bookcase across two structural anchor points. This eliminates the sag and binding that standard door hinges cause when a door weighs 200 lbs or more fully loaded. |
By Jeremy Barker, Founder and CEO, Murphy Door®
Published 2026-08-12
Here's the thing: the most common reason a hidden bookcase door fails in the field isn't the wood, the finish, or the latch. It's the hinge. Standard residential door hinges are engineered to carry a hollow-core slab that weighs 30–50 lbs. Ask that same hinge to swing a loaded bookcase and you're looking at 200 lbs or more, cantilevered off a single edge. The math doesn't work. The hinge fails. The door sags, binds, and eventually stops sealing against the wall, which means it's no longer hidden.
We've been building hidden doors in Ogden, Utah since 2012, and we've served 200,000+ households across that time. I'll tell you what surprised us early on: the gap tolerance is the entire game. A concealed door needs to hold a 3/16-inch reveal on all four sides, consistently, for years. Achieve that and the door disappears into the wall. Lose it by even a quarter inch and anyone who looks twice will see exactly where the door is. The hinge system is the only thing standing between those two outcomes.
This article covers everything worth knowing about hidden bookcase door hinge systems: what they're called, how they differ from standard hinges, what the load limits actually mean, and what to look for if you're buying or specifying one.

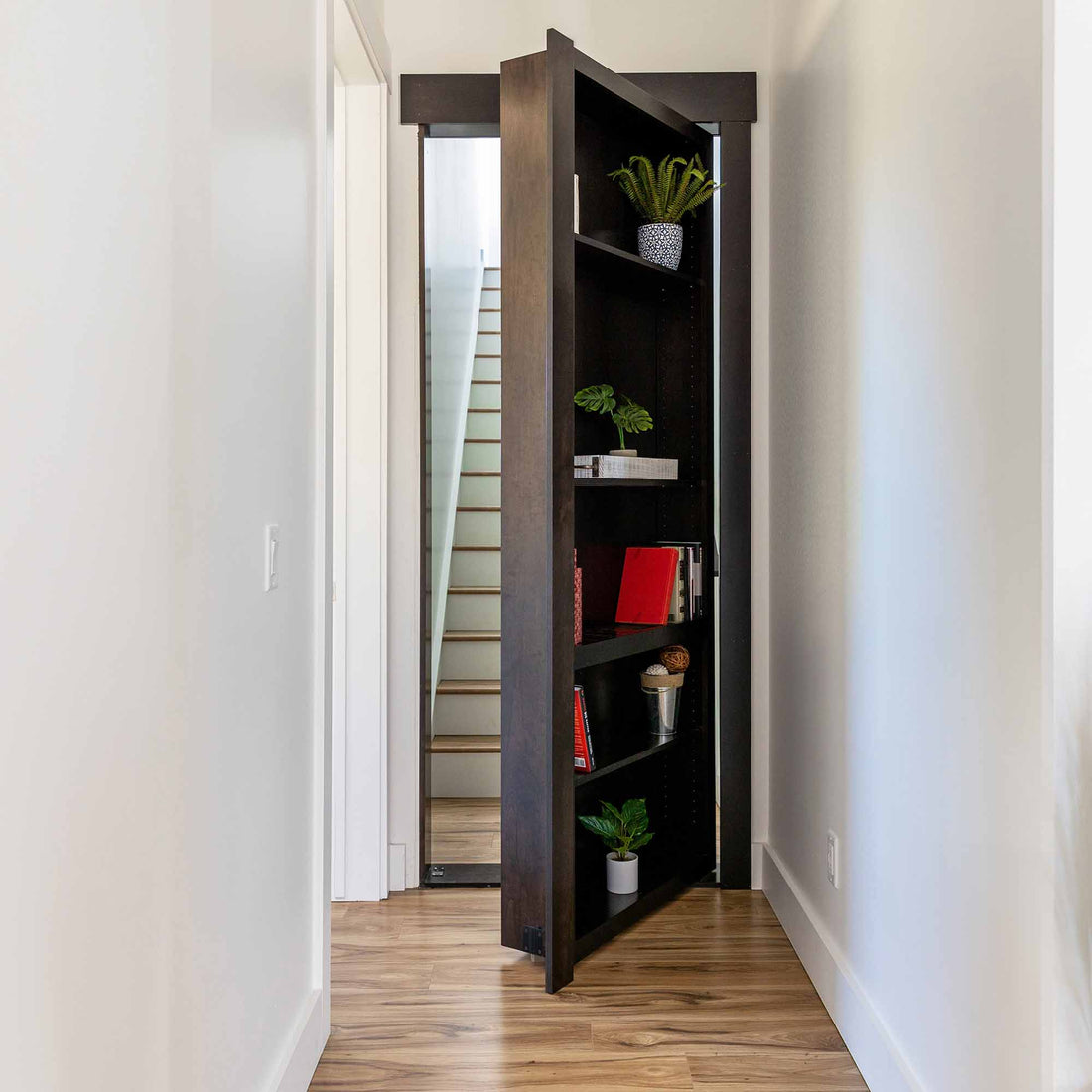

A Murphy Door® flush mount bookcase hidden door shown in the open position. The clean, gap-free reveal around the perimeter is entirely a function of hinge system precision, not wood tolerances or installation luck.
What type of hinge do you use for a hidden door?
The short answer is a pivot hinge system, not a standard butt hinge. A pivot hinge mounts at the top and bottom of the door rather than along the side edge, which shifts the rotational stress away from the face frame and distributes it vertically through the door's core structure. On a hidden bookcase door specifically, you need a system that can handle both static load (the weight of the door and everything on its shelves sitting still) and dynamic torque load (the force generated when that weight swings through an arc during opening and closing).
What are the best concealed hinges for hidden doors?
For a bookcase door that will actually hold books, the patented ball-bearing lower pivot point is the current engineering standard worth knowing about. Murphy Door®'s Patented Ball Bearing Lower Pivot Point, part of a hinge and hardware system tested to 1,540 lbs, is what we build into every hidden bookcase door we ship from our Utah and Kentucky factories. The ball bearing reduces rotational friction significantly compared to a plain-bore pivot, which means the door opens with less force and the hardware wears more slowly over years of daily use.
Are hidden door hinges the same as regular hinges?
No. Regular residential butt hinges are designed for doors under 80 lbs and mount along the vertical edge of the door frame. Hidden bookcase door hinges must be concealed (no visible barrel), must support far greater loads, and must maintain precise gap tolerances across humidity cycles. A standard 3.5-inch ball-bearing butt hinge rated for residential use will work fine on a hollow-core interior door. It will not hold a loaded bookcase door in spec for more than a few months before the door starts to sag.
What are the hidden hinges for hidden doors?
The hardware category you want is a concealed pivot hinge system, sometimes called a pivot-point hinge or a piano-style pivot depending on the manufacturer. What distinguishes a purpose-built hidden door hinge from a generic concealed hinge is the load rating, the bearing type, and whether the system includes a matching upper pivot to share vertical load. A single pivot at the bottom without a corresponding upper anchor point will still let the top of the door drift outward under load. Both anchors matter.
What are the different types of invisible door hinges?
Here's a useful breakdown of what's actually on the market:
- European cup hinges (35mm concealed hinges): Standard in kitchen cabinetry. Designed for cabinet doors under 30 lbs. Not appropriate for passage doors of any meaningful weight.
- Pivot hinges (floor or jamb-mounted): The correct category for heavy passage doors. Load rating varies widely by manufacturer and bearing type. Ball-bearing pivots outperform plain-bore pivots in both load capacity and longevity.
- Continuous (piano) hinges: Run the full height of the door. Distribute load along the entire edge rather than at two points. Used in some commercial concealed door applications but difficult to conceal completely in a bookcase door build.
- Soss-style invisible hinges: Mortised into both the door edge and frame, fully concealed when the door is closed. Work well for lightweight flush doors but are not rated for bookcase-weight loads without significant engineering.
What are the three types of concealed hinges?
If you're categorizing by mounting method: face-frame mounted (European cup), edge-mortised (Soss-style), and pivot-mounted (floor/jamb pivot). For hidden bookcase doors, pivot-mounted is the correct choice. The other two types can't carry the load reliably without external reinforcement that would be visible.
What are hidden door hinges called?
The general trade term is "concealed pivot hinge" or "pivot point hinge." In the residential hidden door category specifically, you'll also see references to "barrel hinges," "pivot sets," and "hidden hinge systems." The naming isn't consistent across suppliers, which makes comparison shopping difficult. What matters more than the name is the rated load, the bearing type, and whether the system was engineered specifically for bookcase-weight applications versus adapted from a general-purpose pivot.
What is a hidden door hinge called?
The hinge itself is most accurately called a concealed pivot hinge or a pivot point hinge. The full system, hinge, upper pivot pin, frame hardware, and any adjustment mechanism, is called a hidden door hardware kit or a pivot hinge system. Murphy Door®'s version of this system is what we sell separately as a hinge and hinge set for contractors and DIY builders who need to hardware an existing opening.
What are the hinges used for hidden doors?
In practice: a lower ball-bearing pivot point mounted to the floor plate or sill, an upper pivot pin mortised into the head jamb, and in some builds a third anchor point mid-frame for very tall or heavy doors. The combination of lower and upper pivots creates a stable rotational axis. The ball bearing at the lower pivot is load-bearing, it's the component doing the actual work of supporting the door's weight as it swings.
The outswing action on a Murphy Door® paint-grade bookcase hidden door. The door pivots cleanly on two anchor points, the patented ball-bearing lower pivot and the upper pivot pin, with no visible hinge hardware on the face or edge.
What are the disadvantages of using hidden door hinges?
Here's where I'll be direct. Pivot hinge systems for hidden doors have real limitations that a standard butt hinge doesn't, and you should know them before you spec a project.
First, pivot-hung doors swing through an arc. The inside corner of the door travels toward the opening as the door swings, which means you need clearance on both sides of the pivot axis. In tight hallways or narrow passages, this matters. Second, adjustability is limited once the door is hung. A standard butt hinge lets you move the door slightly in three directions with simple screw adjustments. A pivot system is more rigid, you set it right once, or you reset it. Third, installation requires a square rough opening. If the framing is out of plumb, the 3/16-inch reveal that makes the door invisible becomes impossible to achieve consistently.
Are concealed door hinges worth it?
For a hidden door application, yes, there's no real alternative that achieves the same concealment. For a standard interior door where concealment isn't the goal, probably not. The complexity and cost of a pivot hinge system only makes sense when the objective is a door that disappears into its surroundings.
How much weight can a hidden door hinge hold?
It depends entirely on the system. Murphy Door®'s hinge and hardware system is tested to 1,540 lbs. Our hidden bookcase doors carry 400 lbs of shelf load on doors up to 36 inches wide. The tested system load rating covers the door, its contents, and the dynamic torque generated during operation.
Generic pivot hinges sold as "heavy duty" through building supply channels are typically rated for 200–500 lbs static, with no published dynamic torque spec. Static and dynamic ratings are different numbers. A pivot rated for 400 lbs static might fail under a significantly lower dynamic torque load if the door travels a long arc quickly. Always ask for both ratings before specifying hardware for a loaded bookcase door.
What is the best hinge for a hidden door?
The answer depends on door weight. Here's a practical table:
| Door Type | Approximate Weight | Recommended Hinge Type |
|---|---|---|
| Flush panel hidden door (no shelves) | 30–80 lbs | Soss-style or light pivot |
| Bookcase door, unloaded | 80–150 lbs | Ball-bearing pivot hinge system |
| Bookcase door, fully loaded | 150–400+ lbs | Patented ball-bearing pivot system, tested rating required |
| Double (French-style) hidden bookcase door | 200–600+ lbs combined | Independent pivot system per leaf, synchronized latching |
Can you replace exposed hinges with hidden hinges?
On a standard interior door, yes, Soss-style invisible hinges can be mortised into an existing door and frame with a router. The limitation is load. If the door weighs more than about 60 lbs, you'll need to verify the hinge rating can handle it. For a bookcase door conversion specifically, replacing butt hinges with a pivot system requires modifying both the door bottom (for the floor plate) and the head jamb (for the upper pivot pin). It's a real carpentry project, not a drop-in swap. We sell replacement hinge and hinge sets for exactly this use case.
Murphy Door® French-style bookcase hidden doors installed in a home library setting. Double-leaf applications require independent pivot systems on each door leaf, with the hinge engineering becoming even more critical when both leaves carry full shelf loads.
What makes a hidden door hinge system different from off-the-shelf hardware?
We figured this out the hard way around year three. The issue isn't the static load rating printed on a spec sheet. It's whether the hardware was engineered as a system, with the pivot geometry, the frame interface, and the door weight all calculated together, versus adapted from a general-purpose pivot and applied to a bookcase door application.
Generic pivot hardware from a commercial door supplier is usually designed for hollow-metal doors in commercial buildings: lighter than a loaded bookcase but hung in rigid steel frames with zero humidity movement. A residential bookcase door lives in a wood frame that moves seasonally. In July, that frame might be 1/8 inch wider than in January. The hinge system has to tolerate that movement without losing the reveal tolerance. Our Patented Ball Bearing Lower Pivot Point is part of a system designed specifically for this environment. The ball bearing reduces the friction that builds up when the pivot point shifts slightly under seasonal wood movement.
Every Murphy Door® hidden bookcase door ships pre-hung, fully assembled, and QA-inspected before it leaves our Ogden, Utah facility. The door arrives with shim stock pre-cut for the 3/16-inch reveal and written torque specs for the hinge bolts. Your contractor is shimming and fastening a tested assembly, not setting up a cold pivot system from scratch. That's a meaningful difference in installation outcome.
What does a Murphy Door hinge kit include, and how does it install?
The single flush mount hardware kit includes the lower ball-bearing pivot assembly, the upper pivot pin, all mounting plates, and the book latch hardware. Installation sequence matters. The lower pivot plate goes down first, anchored to the structural floor plate or sill, not to the subfloor alone, and not to a floating finish floor that can shift. The upper pivot pin sets into a mortise in the head jamb. The door then drops onto the lower pivot and the upper pin engages.
The 3/16-inch reveal is set using the shim stock during installation. Get that gap consistent on all four sides before you fasten anything permanently. Once the fasteners are torqued to spec, the reveal is essentially locked in. Adjustment after the fact requires loosening the pivot plate and resetting, possible, but easier to do right the first time.
If you're going the DIY route, our DIY Murphy Door® kit ships with the hardware pre-installed on the door so you're setting the pivot system into the opening rather than building it from components. The instruction manuals are available on-site if you want to review the installation sequence before you order.
What hidden bookcase door options does Murphy Door offer?
The Hidden Bookcase Door starts at $1,440.00. That's our flagship single flush mount, built on Vaultwood Core panels with real wood veneer, solid hardwood face frames, and solid-wood components, with the full pivot hinge and hardware system already installed. It ships in 10 days from our Utah and Kentucky factories.
If you want a species-matched veneer, the options are oak (starting at $1,556.70), maple (starting at $1,581.70), walnut (starting at $1,806.70), and knotty alder (starting at $1,601.70). All use the same Vaultwood Core (a proprietary MDF engineered stronger than standard MDF) construction with real wood veneer skins. The Vaultwood Core substrate is what keeps the door dimensionally stable across humidity cycles, an engineered MDF core eliminates the warp and twist that plague solid-hardwood-slab swinging doors over time.
If you want a paint-ready surface, the Assembled Flush Mount Paint Grade Hidden Bookcase Door starts at $1,440.00 and comes primed, ready for your choice of paint or finish. The full collection is at murphydoor.com/collections/hidden-bookcase-doors.
Every Murphy Door® hidden bookcase door comes backed by a lifetime warranty on labor, hardware, and hinges, a 5-year warranty on finishes and wood veneer, and a 1-year warranty on any electronics you add. That warranty is only possible because we manufacture everything in-house at our Utah and Kentucky factories, we own the tooling on every hardware component in the system.
A Murphy Door® French-style bookcase hidden door shown in the open swing position. The pivot system on each leaf must independently handle the full cantilevered load of a loaded bookcase half, making hinge engineering twice as critical in double-door configurations.
Start Your Project
Questions about which hinge system fits your opening? Call us at 888-458-5911 or book a virtual consultation. Our team in Ogden, Utah can spec the right hardware for your door size, wall thickness, and swing direction before you order. We've been doing this since 2012, we've seen every rough opening condition that exists, and we know which corners to cut and which corners to weld.
About Murphy Door®
Murphy Door®, headquartered in Ogden, Utah, is the original hidden door company, having built the category to what it is today. Founded in 2012, Murphy Door® has served 200,000+ households from our Utah and Kentucky factories, producing nearly 100 hidden doors per day across bookcase, flush panel, French, mirror, pantry, and specialty configurations. Every Murphy Door® hidden door is built on Vaultwood Core (a proprietary MDF engineered stronger than standard MDF) with real wood veneer skins, solid hardwood face frames, and solid-wood components, backed by a lifetime warranty on labor, hardware, and hinges. The patented Patented Ball Bearing Lower Pivot Point, part of a hinge and hardware system tested to 1,540 lbs, carries 400 lbs of shelf load on doors up to 36 inches wide. Murphy Door® is a registered trademark. Learn more at murphydoor.com.
Frequently Asked Questions
Q: Are concealed door hinges worth it?
A: For a hidden door, yes. There's no alternative hinge type that achieves the same concealment while handling bookcase-weight loads. For a standard interior door where visibility isn't the issue, a concealed pivot system adds cost and installation complexity without meaningful benefit. The case for concealed hinges is specific to applications where the door needs to disappear.
Q: What are the best concealed hinges for hidden doors?
A: Ball-bearing pivot hinge systems designed specifically for bookcase-weight loads. The key specs to ask for are static load rating, dynamic torque rating, and bearing type. A ball-bearing pivot outperforms a plain-bore pivot in both load capacity and long-term wear. Murphy Door®'s hinge and hardware system is tested to 1,540 lbs and is the system we use on every hidden bookcase door we build.
Q: How much weight can a hidden door hinge hold?
A: It depends entirely on the hinge system. Generic residential pivot hinges are typically rated for 200–500 lbs static load with no published dynamic torque spec. Murphy Door®'s hinge and hardware system is tested to 1,540 lbs. Our hidden bookcase doors are rated to carry 400 lbs of shelf load on doors up to 36 inches wide. Always verify both static and dynamic ratings, they are different numbers and both matter for a swinging loaded door.
Q: What are the different types of invisible door hinges?
A: The main categories are European cup hinges (cabinet weight only, not appropriate for passage doors), Soss-style edge-mortised hinges (fully invisible but limited to lighter doors), continuous piano hinges (full-height, used in some commercial applications), and pivot hinge systems (the correct choice for bookcase-weight hidden doors). Pivot systems mount at the top and bottom of the door rather than along the edge, distributing load vertically through the door's core structure.
Q: Can you replace exposed hinges with hidden hinges on an existing door?
A: On a standard interior door, Soss-style hinges can be mortised into the door edge and frame with a router. For a bookcase door specifically, converting from butt hinges to a pivot system requires modifications to the floor plate mounting and head jamb. It's a real carpentry project, not a hardware swap. Murphy Door® sells replacement hinge and hinge sets for this use case, and our installation team can handle the conversion in select cities.
Q: What is a hidden door hinge called?
A: The hinge itself is most accurately called a concealed pivot hinge or pivot point hinge. The full system, lower pivot, upper pivot pin, frame plates, and adjustment hardware, is called a hidden door hardware kit or pivot hinge system. Naming varies by manufacturer, so comparing by rated load and bearing type is more reliable than comparing by product name.
