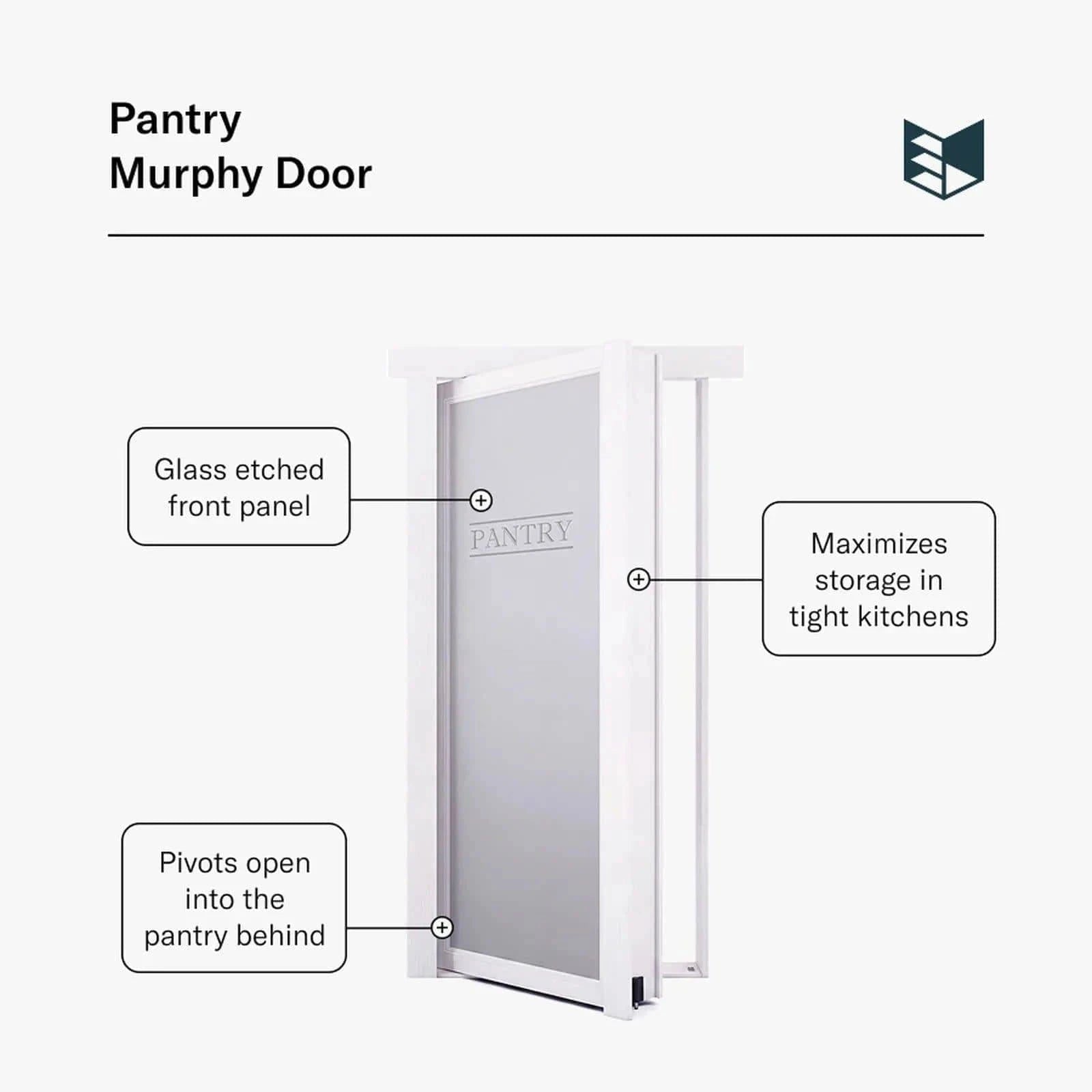

Pantry Murphy Door

The Pantry Door is 8-1/4" deep
Please be aware of the pass through loss and wall clearance requirements.

Jamb Depth:
Our doors are built to install in standard interior door openings. Standard jamb depths are:

• 4-9/16" for a 2x4 wall with drywall
• 6-9/16" for a 2x6 wall with drywall

Custom jamb depths are available on out-swings only. The threshold will be 7" deep regardless of door depth or jamb depth unless you enter a custom jamb depth deeper than 7" then we will make the threshold match the depth of your jamb.

Shelf Depth:
6-1/2" shelf depth

Average Door Weight:
Average door weight is 150 to 175 lbs depending on width, height, options, and locking system. Door will hold up to 300 lbs but we cannot guarantee rated weight for doors over 36" wide.

Entablature (optional):
Height: 7-1/2"
Width: Entablature width varies depending on door width. Top is 12" wider than door, bottom is 6" wider than door.

• Murphy Door does not guarantee against sag or twist on doors wider than 36" (Rough Opening 38").
• Total width of the inside dimensions of the jamb is the size listed on you door option (IE: 30" door is 30" inside to inside of the jamb).
• Our doors are constructed using a MDF Core - 3/4" sides, 1-1/2" top, 1-1/2" bottom, 3/4" shelves, 1/2" back panel, 3/4" casings - paint-grade or real wood veneer options available — Handmade in the USA. The face frame and cabinet doors are 3/4" solid hardwood. MDF cores carry our full 1 year warranty.
• All Murphy Doors will be built to accommodate shimming for both the height and width.
• All existing jamb and trim will need to be removed prior to installation of a Murphy Door.
• Murphy Door is not responsible for issues with painting or staining of an unfinished door.

All of our flush mount hidden doors will lose pass through space and protrude into the room behind.

IN-SWING DOOR

In-swing doors lose less pass through space, but require wall clearance to fully open.

*Door protrusion is based on a 4-9/16" door jamb.

OUT-SWING DOOR

Out-swing doors lose more pass through space, but will not require wall clearance to fully open.

*Door protrusion is based on a 4-9/16" door jamb.
